87K Intensifier Check Valve Maintenance Kit
Codice
012035-1
Compatibile con
Flow
Anche come
1-14522, 392003-2, FW012035-1, AW012035-1
Categoria
6000 bars
I marchi e i codici di terzi sono indicati solo per identificare la compatibilità. Non implicano che il pezzo sia un ricambio originale di quel produttore.

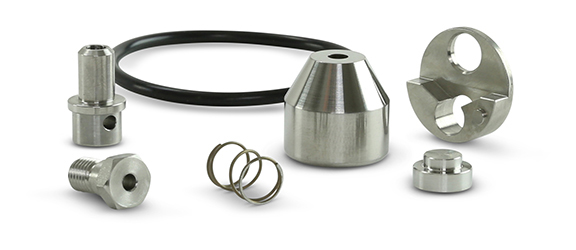

The kit includes Retaining Inlet Screw, Inlet Poppet, Support, Seat, Poppet, Spring, Spring Seat, and O-Rings
This Kit Contains:
1 - FW004380-1 Retaining Screw, Check Valve
1 - FW010564-1 Inlet Poppet Retainer, Check Valve
1 - FW015384-1 Inlet Poppet, Check Valve
1 - FWA-0275-131 O-Ring, Buna-N, 70A, -131
1 - FW014388-1 Outlet Seat, Check Valve, 87 KSI
1 - FW011309-1 Outlet Poppet, Check Valve, 87 KSI
1 - FWA-1606 Outlet Spring, Check Valve
1 - FW060652-1 Seat, Outlet Spring, Check Valve, 87 KSI
Caratteristiche
| Codice | 012035-1 |
|---|---|
| Compatibile con | Flow |
| Tipo di pezzo | Bomba |
| Pressione di esercizio | 6.000 bar |
| Peso | 0.04 kg |
| Anche come | 1-14522, 392003-2, FW012035-1, AW012035-1 |
| Categoria | 6000 bars |
