87K Intensifier Check Valve Maintenance Kit
Referencia
012035-1
Compatible con
Flow
También como
1-14522, 392003-2, FW012035-1, AW012035-1
Categoría
6000 bars
Las marcas y referencias de terceros se indican únicamente para identificar la compatibilidad. No implican que la pieza sea un repuesto original de ese fabricante.

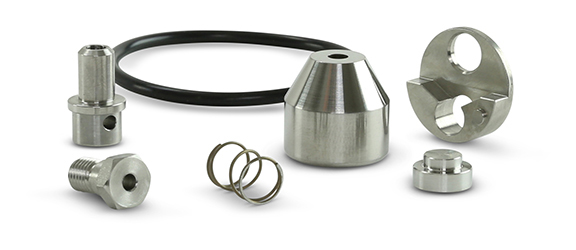

The kit includes Retaining Inlet Screw, Inlet Poppet, Support, Seat, Poppet, Spring, Spring Seat, and O-Rings

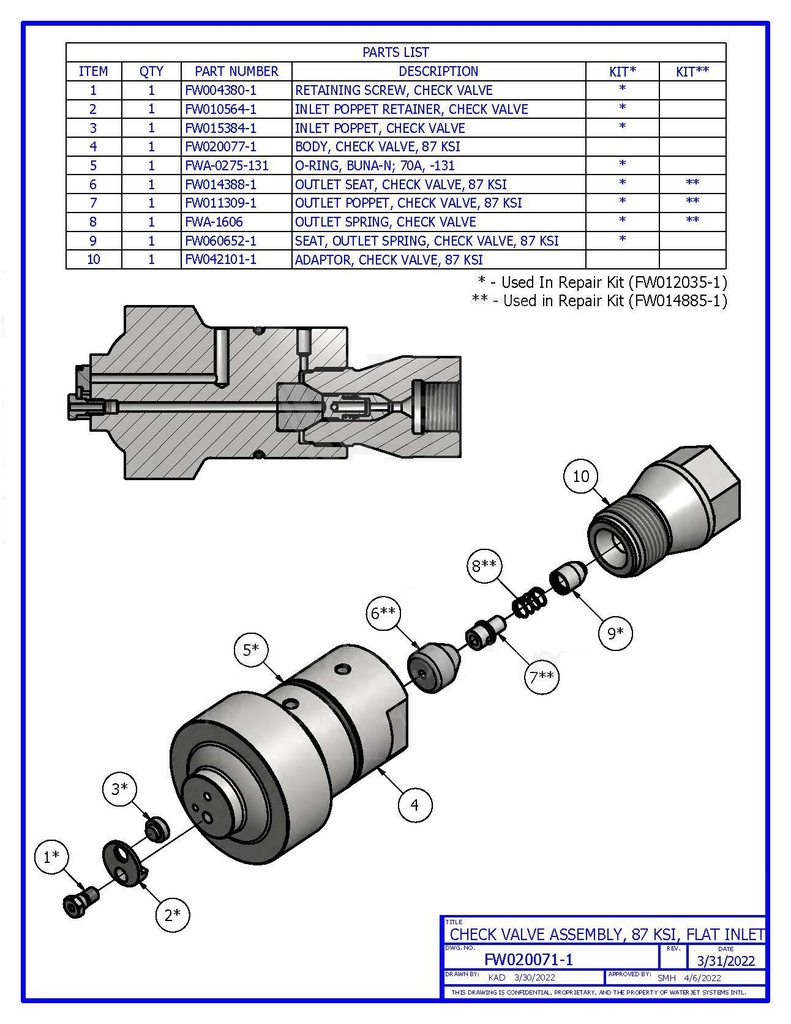

This Kit Contains:
1 - FW004380-1 Retaining Screw, Check Valve
1 - FW010564-1 Inlet Poppet Retainer, Check Valve
1 - FW015384-1 Inlet Poppet, Check Valve
1 - FWA-0275-131 O-Ring, Buna-N, 70A, -131
1 - FW014388-1 Outlet Seat, Check Valve, 87 KSI
1 - FW011309-1 Outlet Poppet, Check Valve, 87 KSI
1 - FWA-1606 Outlet Spring, Check Valve
1 - FW060652-1 Seat, Outlet Spring, Check Valve, 87 KSI
Características
| Referencia | 012035-1 |
|---|---|
| Compatible con | Flow |
| Tipo de pieza | Bomba |
| Presión de trabajo | 6.000 bar |
| Peso | 0.04 kg |
| También como | 1-14522, 392003-2, FW012035-1, AW012035-1 |
| Categoría | 6000 bars |
